M.2 – UPS and Power Management HAT
for Raspberry Pi® 5
The M.2 Ultimate Power Management System with RTC,
Enhanced Peripherals and I2C control Interface
Intelligent Mobile Power Bank
Ultra – High Current Extended Buck Supply of 5.0A
Click the best model that fits-in to your needs!
PRE-ORDERS has been started!
pre-orders offer: free Li-Ion 18650 3500 mAh or LiPO XH-2.5 600 mAh Battery
The M.2 – UPS & Power Management HAT is an Ultimate Power Management System HAT designed especially for Raspberry Pi® 5 that open the full functionality of their embedded PCIe (M.2) interface and adds a wealth of innovative powerful and development features to the Raspberry Pi® 5 microcomputer!
It has been designed especially for the Raspberry Pi® 5 and considers all enhanced power and cooling requirements of the Raspberry Pi® 5 models. It has been designed to work with Official Cooler exploring their enhanced cooling capabilities for Raspberry Pi 5 as also for the added M.2 devices.
The core functionality of the M.2 – UPS & Power Management HAT is to provide an interface for M.2(NGFF) M-Key (2230, 2242 and 2280) and at the same time power backup (UPS), by protecting during the running time and automatically shut-down your Raspberry Pi® 5 if there is a cable power failure and reboot your Raspberry Pi® 5 once cable power has been restored!
However, it is only a small part of plenty and powerful functionalities that are implemented on this small HAT. The new M.2 – UPS & Power Management HAT contains two selectable backup power sources that can be used. The wide available on the market Battery 18650 Li-Ion or large selection line of XH-2.5 connector batteries (600 mAh – 10 000 mAh) as also Super Capacitor of 4000F.
The new M.2 – UPS & Power Management HAT is the only one that supplies the Raspberry Pi® 5 RTC with battery backup (J5) and eliminates the need to use an additional battery for this purpose.
Last but not least is that implemented M.2 interface is equipped with 32786 kHz clock, similar to the official Raspberry Pi® 5 M.2 HAT.

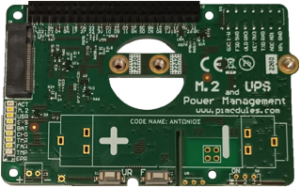

The new M.2 – UPS & Power Management HAT Standard does not need any additional powering cable and thanks to the implemented proprietary monitoring algorithm monitors the and current consumption via GPIO.

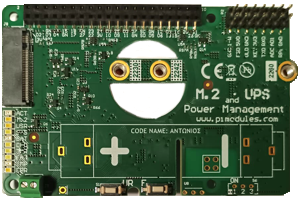

In addition, the version Advanced/PPoE can be powered via External Powering (like Solar Panel) and provides 5A @5 VDC. The M.2 – UPS & Power Management HAT is equipped with unique Power Tracking algorithm that adjusts the required power for charging depending to Sun Availability.
For ordering, please select the version of M.2 – UPS & Power Management HAT you prefer and build up its configuration online.
