Description

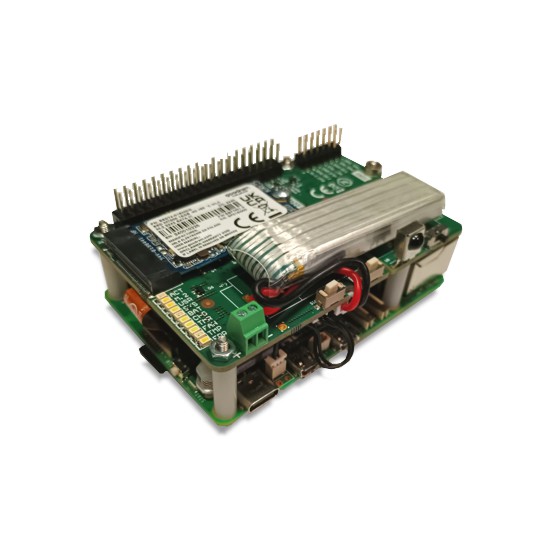

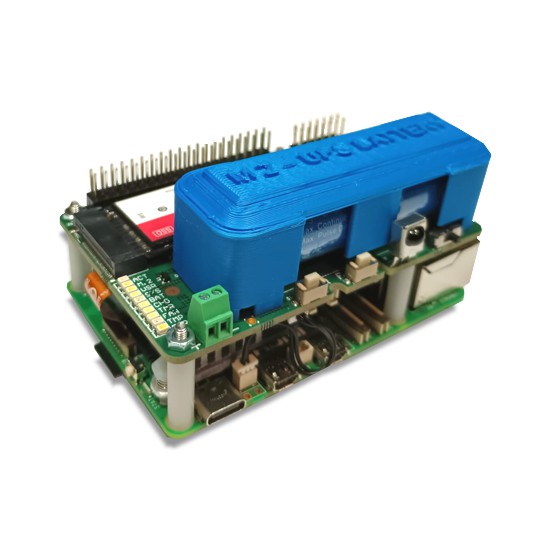

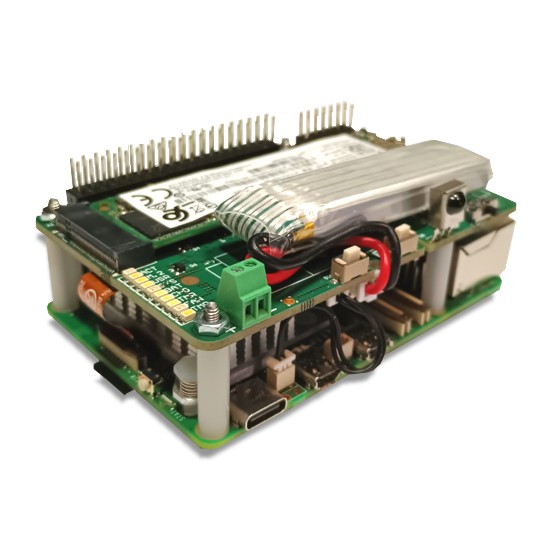

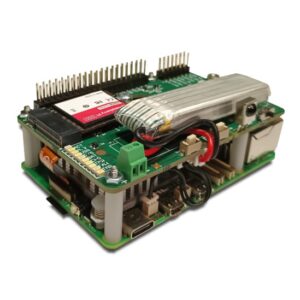

M.2 – UPS and Power Management HAT Advanced/PPoE

The M.2 Ultimate Power Management System with RTC,
Enhanced Peripherals and I²C control Interface
Intelligent Mobile Power Bank

Ultra-Hight Current Boost/Buck Supply of 5.0A
Extended Designed especially for the Raspberry Pi®5
Does not need any External cable Powering Source if Raspberry Pi®5 is powered via USB-C



3D PDF File

Latest Manual

Prospectus

Firmware Update

STEP File

Ordered Item contains:

• M.2 – UPS & Power Management HAT Advanced/PPoE with all described below long list of features
• 40 pin adequate high header (not passed through)
• 16 way PCIe Flexi Cable (FPC)

• 4 pin PoE header (not Soldered)
• Self glued protection rubber for PoE pins

• 2 pin EPR 2.54mm Terminal Block (Soldered)
• Raspberry Pi® 5 RTC Battery Supply Cable
• Mounting Spacers, screws, nuts needed to mount on the Raspberry Pi® microcomputer

Ordered Item does not contain and could be ordered separately if needed for specific application :

Batteries (pre-orders exception – 1 pc for free)

• Standard/High Capacity/Current XH-2.5 LiPo-LiPoFe4 Batteries (600 mAh, 2000 mAh, 4000 mAh, 8000 mAh)
• Standard/High Capacity/Current 18650 Li-Ion Batteries 3500 mAh

Super Capacitors

• 4000F XH-2.5 Super Capacitor 4.2V with Cable


Through Hole Add-on Parts

• ON/OFF micro Slide Switch
• pogo pin

Application Specific Add-on Extensions

• Raspberry Pi Active Cooler for Raspberry Pi® 5

System Overview

The M.2 – UPS & Power Management HAT is an Ultimate Power Management System HAT designed especially for Raspberry Pi® 5 that open the full functionality of their embedded PCIe M.2(NGFF) interface and adds a wealth of innovative powerful and development features to the Raspberry Pi® 5 microcomputer!

It has been designed especially for the Raspberry Pi® 5 and considers all enhanced power and cooling requirements of the Raspberry Pi® 5 models. It has been designed to work with Official Cooler exploring their enhanced cooling capabilities for Raspberry Pi® 5 as also for the added M.2 devices.

The core functionality of the M.2 – UPS & Power Management HAT is to provide an interface for M.2(NGFF) M-Key (2230, 2242 and 2280) and at the same time protect and automatically shut-down your Raspberry Pi® 5 if there is a cable power failure and can be set to automatically monitor and reboot your Pi once cable power has been restored!

However, it is only a small part of plenty and powerful functionalities that are implemented on this small HAT.  The new M.2 – UPS & Power Management HAT contains two selectable backup power sources that can be used (once at a time). The wide available on the market Battery 18650 Li-Ion or large selection line of XH-2.5 connector (600 mAh – 10 000 mAh) cover any extended Battery Backup request. In addition can be also powered with Super Capacitor of 4000F

The new M.2 – UPS & Power Management HAT is the only one that supplies the Raspberry Pi® 5 RTC with battery backup (J5) and eliminates the need to use an additional battery for this purpose.

Last but not least is that implemented M.2 interface is equipped with 32786 kHz clock, similar to the official Raspberry Pi® 5 M.2 HAT.

The new M.2 – UPS & Power Management HAT does not need any additional powering cable if system is powered via USB-C and thanks to the implemented proprietary monitoring algorithm monitors the and current consumption via GPIO and other powering sources.

The new M.2 – UPS & Power Management HAT offers an External Powering Input of 5V0 – 32V0 supply that can be easily used with any existing Solar Panel. Due to implemented Power Tracking and Dynamic Charging Algorithm, adopt the system power needs to the available Solar Power!

The External Powering Input and the GPIO Powering (via USB-C) can be connected at the same time and system decides what Power Source will be selected!

In addition to the listed powering sources an extra powering source has been implemented – the Passive PoE. Much simpler and much lower cost than the PoE/PoE+. The M.2 – UPS & Power Management HAT can be powered through the Ethernet without expensive equipment, just with a simple power injector that costs 2 EURO. This an ideal solution for a low-cost homemade PoE Systems based on the Raspberry Pi 5 and M.2 – UPS & Power Management HAT

Features

The list of features of the M.2 – UPS & Power Management HAT is as follows:

General

• Email broadcasting on events (Cable Power loss/return, Wake-up, User Button, A/D etc.)
• Plug and Play
• Ultra-light System.d Daemon based on threading
• GPIO free (all GPIOs are available for user application) interaction with Raspberry Pi® 5 via I²C
• Enhanced System Monitoring and Programming I²C API
• Labeled J8 Raspberry Pi® 5 GPIO Pins for Easy Plug & Play of experimental cables
• 40 pin adequate high header THT 40 Pin connector

• Remote bootloader for Live Firmware Update on remote locations
• Local bootloader for Live Firmware Update

Powering Options

• user battery XH-2P (2.5mm) LiPO Battery 600 – 10 000 mAh 15C, or 18650 Li-Ion or Super Capacitor 4000F
• Enhanced Line Interactive UPS functionality (25us response time) Version Standard
• Enhanced Line Interactive UPS functionality (25us response time) Version Advanced
• Additional File Safe Shutdown and Start-up Functionality on a Single Button in addition to Raspberry Pi® 5 button
• Continuously 5A@5.25V supply on battery power backup
• Programmable Battery backed-up of independent power sources of 200@5V and 3V3
• Intelligent Mobile Power Bank with ON/OFF switch functionality with save shutdown/start-up, with Internal or External Slide Switch and RTC

Supported Battery Types and Capacities

• Supports a wide range of different Chemistry batteries (LiPO/LiFePO4/Li-Ion)

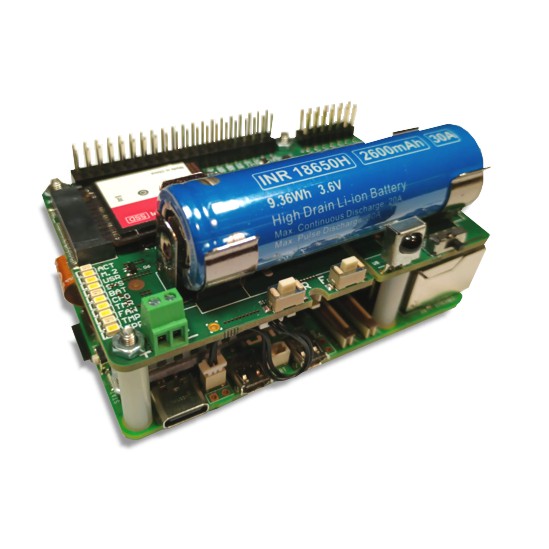

• Support for 18650 low-cost batteries (from Electronic Cigarettes) with dedicated mounting holder soldered on top (with electronic reverse polarity protection)
• Support for XH-2P (2.5mm) Super Capacitor 4000F (with mechanical reverse polarity protection)
• Supported Capacities: 600 mAh, 2000 mAh, 4000 mAh, 8000 mAh

Embedded Peripherals and Interfaces

• 1 User Programmable buttonOn Board

• 1 User Programmable LEDs (with mapping capability of the system behavior LEDs)
• System File Safe Shutdown/Start-up button with additional cable connectivity to external button
• 2 x 200 ks/s ESD protected A/D with voltage follower (high impedance), pre scaled to 0-5V and 0-25V
• On board ESD Protected 3V3/5V0 1-wire interface
• Integrated additional Hardware Real Time Clock (RTC) with Battery Back-Up
• Battery power for Raspberry Pi® 5 RTC supplied with extra cable to J5
• 3V3 Serial Port

Embedded Sensors

• Double High-side bi-directional hardware current sensing monitor with power calculation
• onboard temperature sensor
• Battery Level Voltage
• Raspberry Pi® 5 GPIO 5V level
• EPR/PPoE Level Voltage

M.2 (NGFF) M-Key Interface

• Supports 2230, 2242 and 2280
• Implemented SUSCLK 32.768 kHz
• Independent 3A Power Supply with Battery Backup
• Connectivity with Raspberry Pi® 5 via 16 pins FPC

User/Programmer Interface

• I²C API Interface for Control and Monitoring, with over 50 programming registers
• Support for 4 different users selectable I2C addresses sets:
  • DEFAULT: 0x68, 0x69, 0x6A, 0x6B, 0x6C, 0x6D, 0x6E, 0x6F
  • NO_RTC: 0x69, 0x6
  • ALTERNATE1: 0x58, 0x59, 0x5A, 0x5B, 0x5C, 0x5D, 0x5E, 0x5F
  • ALTERNATE2: 0x48, 0x49, 0x4A, 0x4B, 0x4C, 0x4D, 0x4E, 0x4F

RTC Support and System Scheduler

• RTC Scheduler
• Enhanced shutdown and start-up system based on various internal/external events: Time stamp, A/D level, RS232 data, Cable Powering/Loss (UPS), Battery Level, I/O Level, etc.

Case Compatibility

• Dedicated – available soon

System Monitoring

• Status Monitoring – Powering Mode, Inbound current, Outbound current, Powering Voltage, Battery Voltage, Temperature (Raspberry Pi Core and M.2 – UPS & Power Management HAT), Timer State
• Events Pi Log feature
• System LEDs – ACT, M.2, USR, SYS, BAT, CHG, TMR, FAN, TMP, EPR (optionally selected can be mapped to User LED)
• System Healthy, that informs user remotely if Raspberry Pi and M.2 – UPS & Power Management HAT are running properly, and system is power protected (based on various internal system triggers)

System Protection

• Direct Raspberry Pi® 5 Hardware ON/OFF Button via Spring Loaded POGO Pin point to J2 (optional)
• Programmable Watch-Dog Hardware feature (Still Alive Timer)
• XH-2P Cable Batteries mechanical reverse polarity protection
• 18650 battery electronic reverse polarity protection
• PPTC  fuses on all Power Input/Output

• ZVD circuit on all 5V GPIO powering connections
• Micro-controller-based watchdog
• Over Temperature protection
• Over Current protection

System Design

• Designed and Simulated with PDA Analyzer with one of the most advanced CAD/CAM Tools – Altium Designer
• Design Based on Microchip 16-bit 16 MIPS micro controller
• Industrial Originated

PCB Construction

• 2 oz copper PCB manufactured for proper high current supply and cooling
• 6 mils track/6 mils gap technology 4 layers PCB
• PCB Surface Finishing – Immersion Gold
• Multi-layer Copper Thermal Pipes for increased System Thermal Response and better passive cooling
