Hi,

Please advise firmware version, hardware configuration (what other HAT are used if so) as also what Raspberry Pi you are using (model) in order to support you.

Thank you and Kind Regards

Hi

The firmware is 0x179, which I upgraded yesterday to attempt to see if it would fix it. It did not. I also tried it on firmware 0x156. I am using a HV4B with a LiPo. Reset and power pins are connected to the RPi via two small leads. I've been using a contact button to short the F button & Ground on the external button connectors, but the behaviour is the same with the on-board F button.

The other hats are:

SIM7600X 4G Hat ( https://core-electronics.com.au/waveshare-4g-hat-for-raspberry-pi-lte-cat-4-4g-3g-2g-gnss.html?gad_source=1&gclid=EAIaIQobChMIv-eVzK23igMVEA2DAx1Uch32EAQYASABEgKN1_D_BwE)

MCC 172 DAQHAT ( https://digilent.com/shop/mcc-172-iepe-measurement-daq-hat-for-raspberry-pi/?srsltid=AfmBOop88RxfO6Y43Hb3NvsQSFIqwQBJd2rqci98O9ioW7vvtP_at67u)

The MCC 172 is also connected permanently via USB.

The Raspberry Pi is a 4B running Raspberry Pi OS x64.

Thanks

Hi. Are you able to help? I haven't heard back.

Thanks

Hi,

Yes, I reproduced it here with version 0x0179. Working to correct it. It is a bug

BR PiM

Hi Pi Modules Team

Thanks for confirming.

Any updates on when a new firmware might be released?

Thanks

Hi,

This week. Please also download new setup registers script we released before 3 days

BR PiM

Hi

I downloaded the new registers setup script from the firmware page, pico_setup2.6_hv4.0.py but it tells me I need firmware 0x0180. Where can I find 0x0180 firmware? It doesn't appear on the firmware download page.

Thanks

@kaif

Hi,

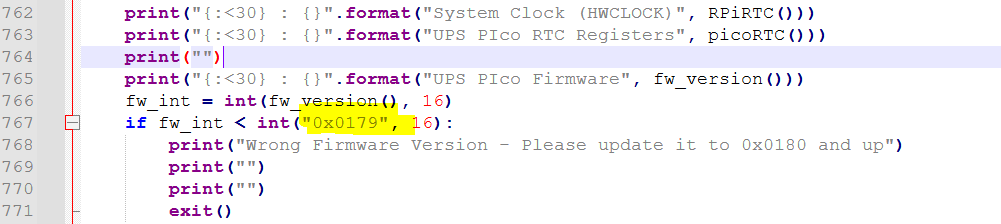

It has been not released yet. However the script is proper and working also with 0x0179. Until we release the 0x0180 please edit the script and change the 0x0180 to 0x0179, and everything will be working well.

See below

BR PiM

Thanks for the help. I've made that change and successfully run the script.

I am not sure what settings I am meant to change to stop the above behaviour. Could you please give me some direction?

Here's what I see:

UPS PIco Firmware              : 0179
UPS PIco Bootloader            : 41
UPS PIco PCB Version           : 41

UPS PIco PCB Defaut Battery    : 0x4c (Battery LiPO 'L')
UPS PIco Set Battery           : 0x6c (Battery LiPO+SC 'l')
Powering Mode                  : Cable POWERED

RP Core Temp                   : 26 C
RP Core Temp (PICo)            : 25 C

+----------------------------------------------------------------------------------------------------------------------+
|Number|     Register    |Address|Value|                                        |Number|     Register    |Address|Value|
+----------------------------------------------------------------------------------------------------------------------+
  0(b) pico_state...........0x00 : 0x00                                         | 20(b) on_the_go...........0x16 : 0x00
  1(b) Battery Runtime......0x01 : 0x01   (1 min)                               | 21(b) map_led_green.......0x17 : 0x00
  2(b) RS232 Rate...........0x02 : 0x00   (PICO_OFF  RPI_OFF)                   | 22(b) map_led_blue........0x18 : 0x00
  3(b) rpi_hold_on..........0x03 : 0x00                                         | 23(b) chg_ctrl............0x19 : 0x01
  4(b) pico_rpi_route.......0x04 : 0x00                                         | 24(b) fssd_duration.......0x1a : 0x1e
  5(b) sta_timer............0x05 : 0xff   (OFF)                                 | 25(b) rpi_OFF_time_reg....0x1b : 0x05
  6(b) enable5V.............0x06 : 0x00   (OFF)                                 | 26(b) ad_corectionf.......0x1c : 0x00
  7(b) battype..............0x07 : 0x4c   (Battery LiPO 'L')                    | 27(b) Scheduler_Sel.......0x1d : 0x00
  8(b) setA_D...............0x08 : 0x00                                         | 28(b) BS_action_time......0x1e : 0x00
  9(b) led_green............0x09 : 0x00   (OFF)                                 | 29(b) BS_inaction_time....0x1f : 0x00
  10(b) led_blue............0x0a : 0x00   (OFF)                                 | 30(w) BS_Start_time.......0x20 : 0x0000
  11(b) relay...............0x0b : 0x00   (OFF)                                 | 31(b) BS_multipier........0x22 : 0x00
  12(b) bmode...............0x0c : 0x01   (BUZZER AUTO)                         | 32(b) BS_RUN..............0x23 : 0x00
  13(w) bfreq...............0x0e : 0x0000 (0 Hz)                                | 33(b) SAS_number..........0x24 : 0x00
  14(b) bdur................0x10 : 0x00                                         | 34(b) SAS_run.............0x25 : 0x00
  15(b) fmode...............0x11 : 0x03   (FAN AUTO HARD)                       | 35(b) ps_checking_time....0x26 : 0x1e
  16(b) fspeed..............0x12 : 0x64   (100)                                 | 36(b) BAT_level_report....0x27 : 0x05
  17(b) fttemp..............0x13 : 0x45                                         | 37(w) SC_level_start......0x28 : 0x0000
  18(b) fsstep..............0x14 : 0x01                                         | 38(b) debug_mode..........0x2a : 0x00   (PICO_OFF     RPI_OFF)
  19(b) LEDs_ON/OFF.........0x15 : 0x01   (ON)                                  | 39(blk) RS232_data........0x2b : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00

Please send me picture (screen shot) to have better view

BR PiM

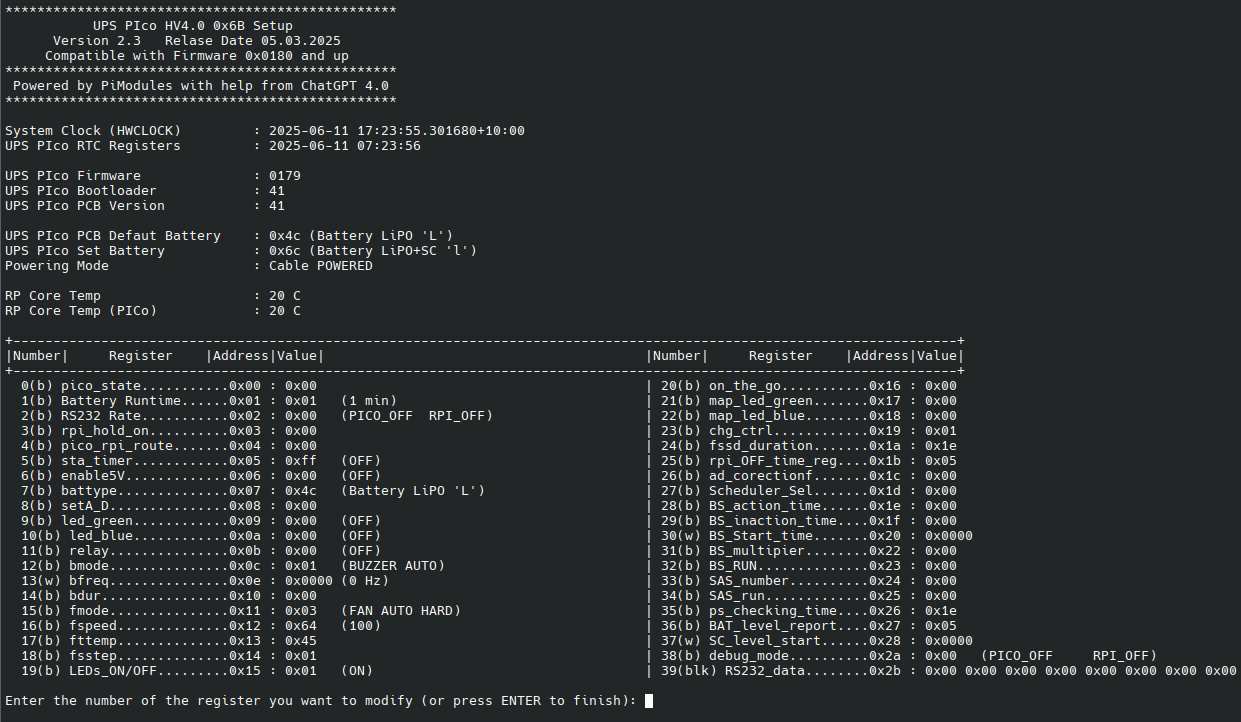

refer attached.

thanks

Hi,

This script has been written (by the way by CHATGTP and polished by us), in order to simplify changes of the PIco registers. As most of the people have had some difficulties to change any register, we made this script that is doing that job much easier. I was thinking it is very initiative i.e. instead of writing

sudo i2cget 0x6b 0x07 to check the value,

and then set the new one i.e.

sudo i2cset 0x6b 0x07 0x49

You just run the script, select what register you need to change, see the current value, you are advised what value are allowed, write it and that's it, see again what has been changed

Hope you enjoy it.

Must say that without CHATGPT I would be needed couple of days to write it, now it has been done in 24 hours. New nice and very efficient era is coming for us.

My Best Regards

PiM (Pi Master)
